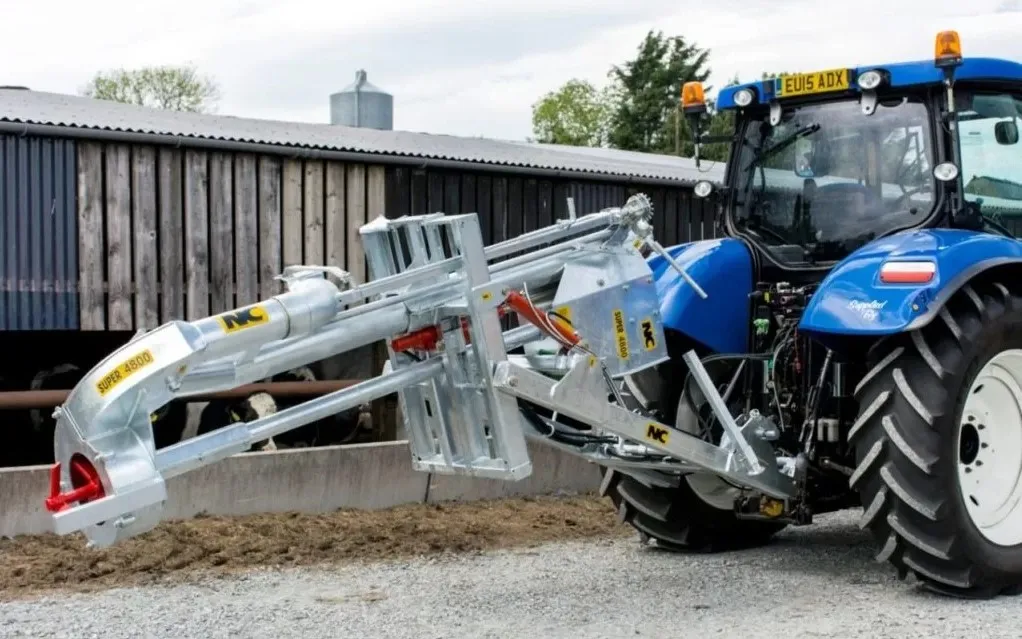

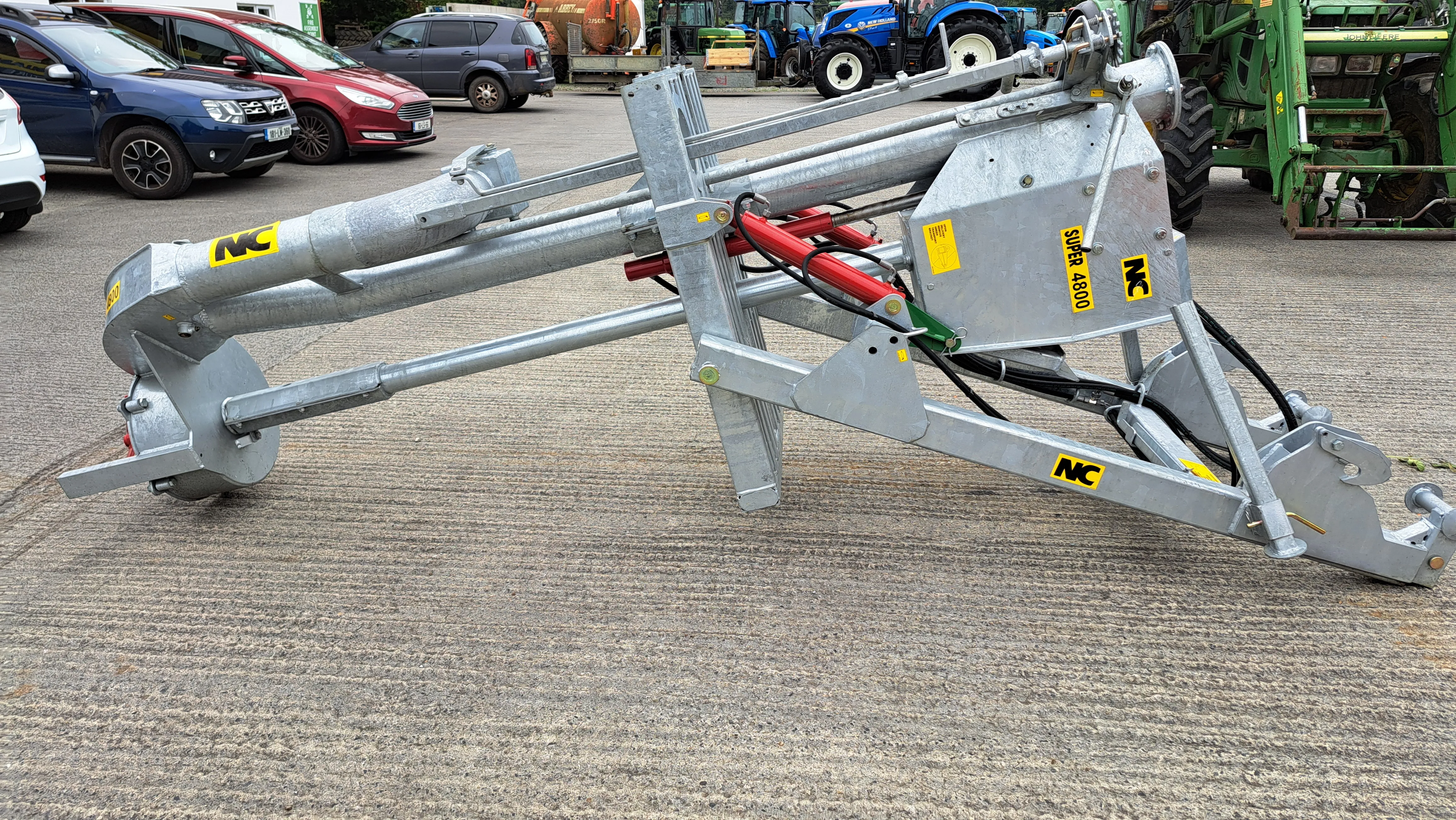

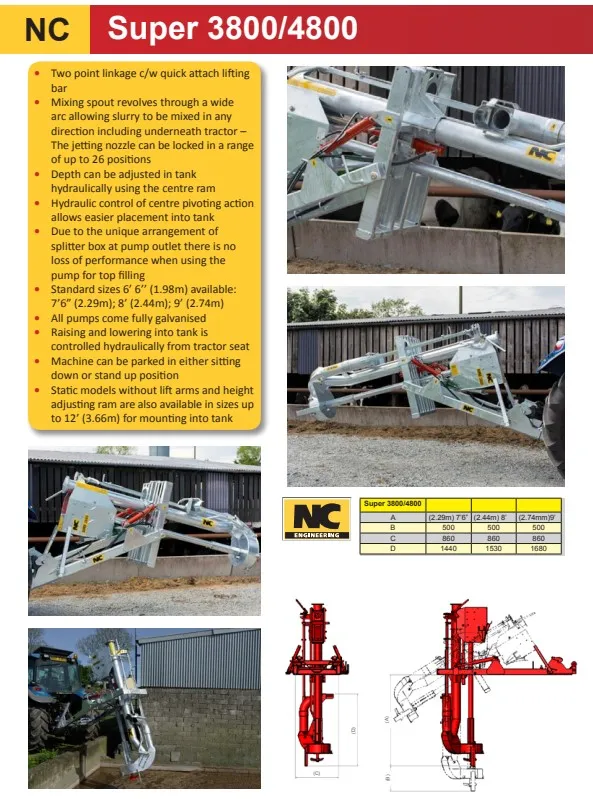

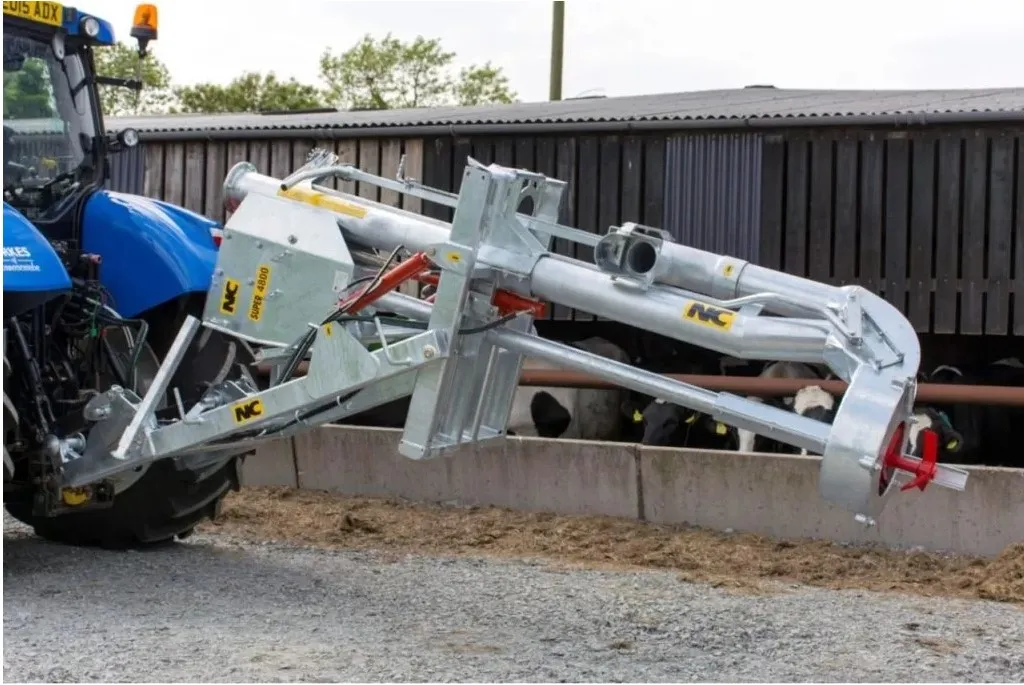

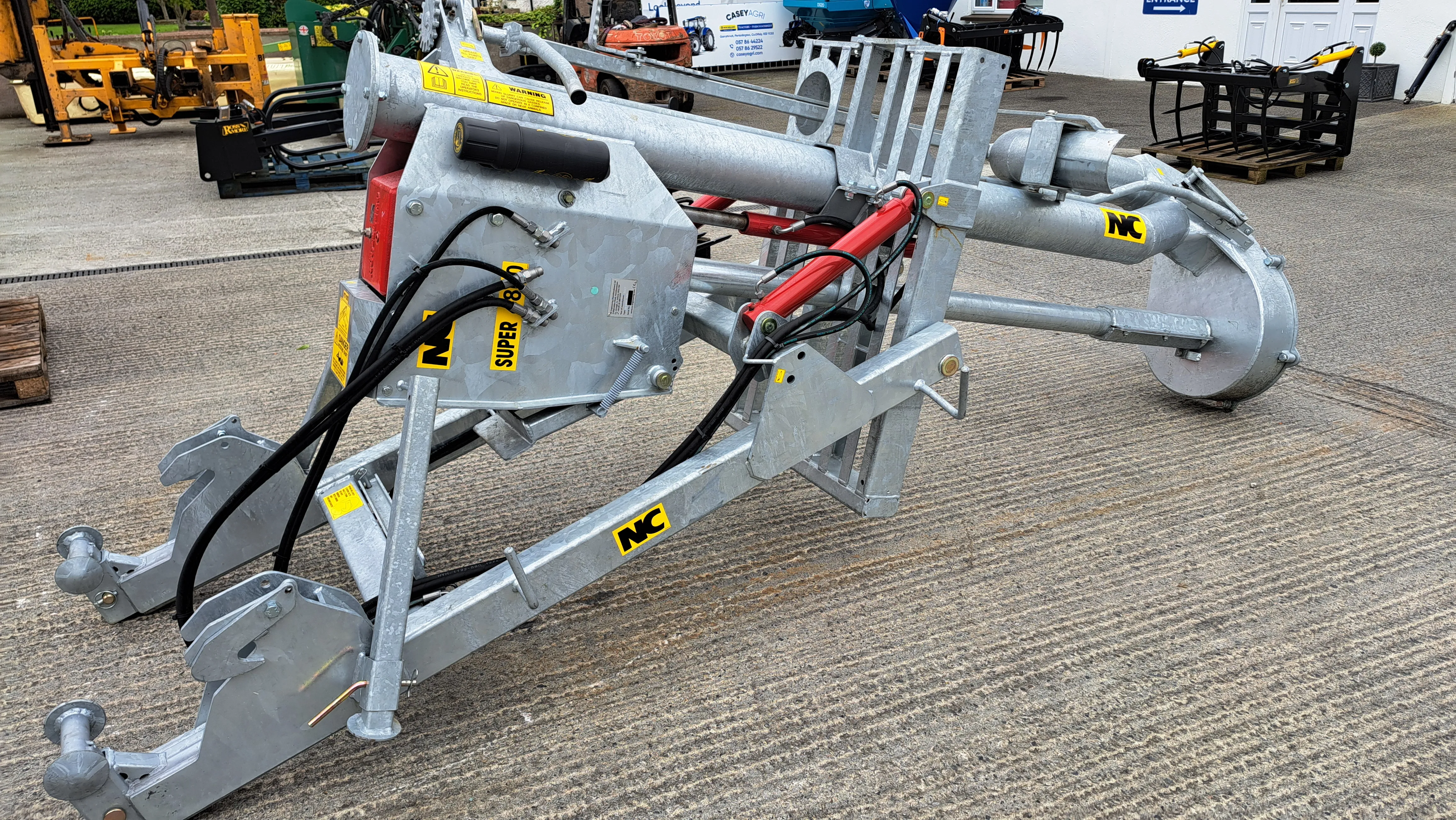

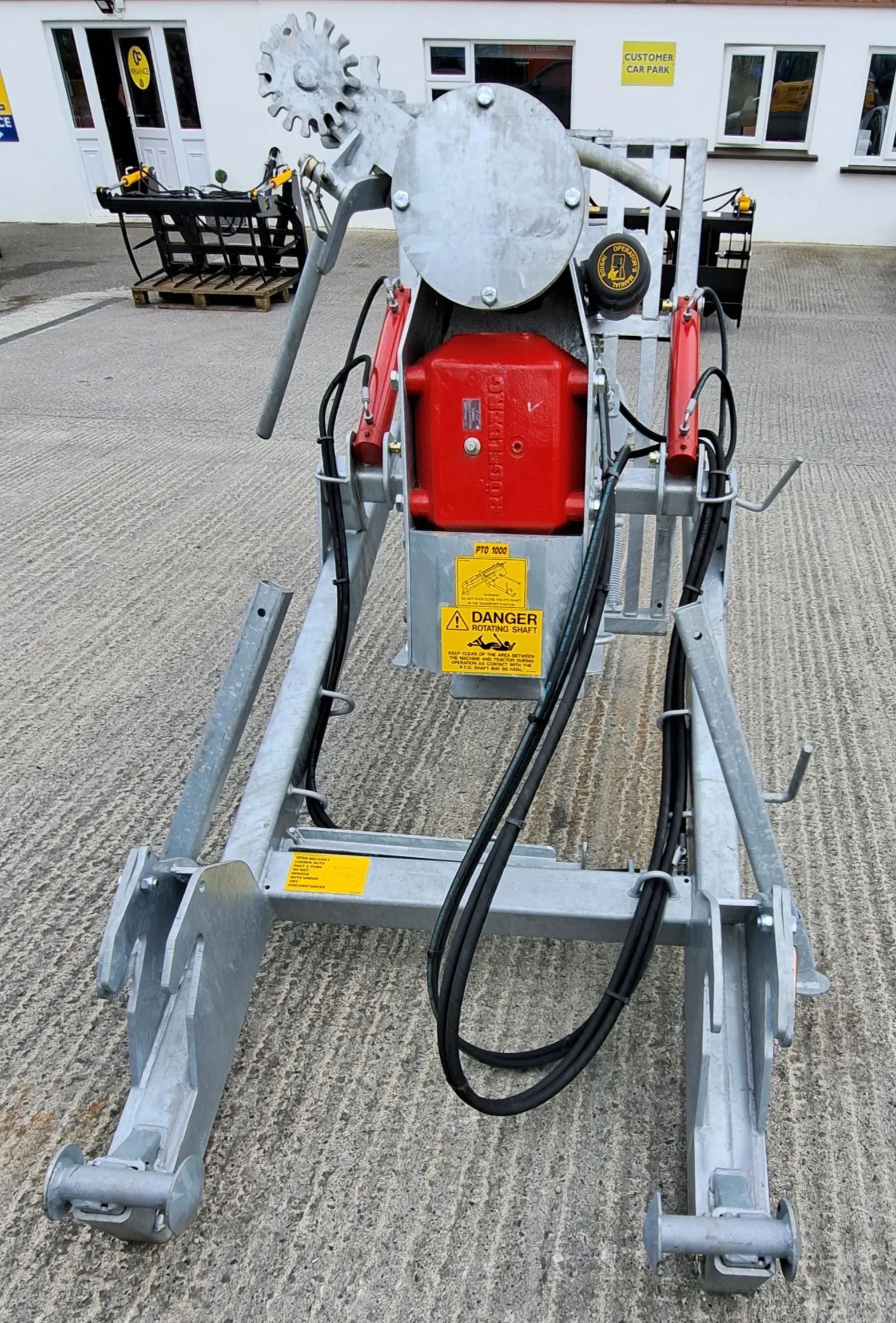

NEW NC Super 4800 Agitator Pump

The 4800 is designed for large scale contractors who would have a 160 HP tractor available for the task of mixing slurry with a flow capacity of up to 4800 gallons per minute (21,600 litres per minute).

The main features are:

• Higher capacity gearbox – 1000 RPM

• Two point linkage c/w quick attach lifting bar

• Mixing spout revolves through a wide arc allowing slurry to be mixed in any direction including underneath tractor – The jetting nozzle can be locked in a range of up to 26 positions

• Depth can be adjusted in tank hydraulically using the centre ram

• Hydraulic control of centre pivoting action allows easier placement into tank

• Due to our unique arrangement of splitter box at pump outlet we have no loss of performance when using the pump to top fill

• Standard sizes which are available:  6’6” (1.98m); 7’6”(2.29m); 8’(2.44m); 9’(2.74m); – other sizes available on request

• All pumps are galvanised as standard – painted finish is available upon request

• Raising and lowering into tank is controlled hydraulically from tractor seat

• Machine can be parked in either sitting down or stand up position

• Static models without lift arms and height adjusting ram are also available in sizes up to 12’ (3.66m) for mounting into tank
